1. Executive Summary & Information Gain: The Science of Commercial-Grade Framed Mirrors
In the contemporary architecture and luxury hospitality sectors, Framed Vanity Mirrors have evolved beyond mere functional reflective surfaces into architectural focal points that dictate space perception, lighting harmony, and structural durability. For global procurement officers, commercial developers, and high-end wholesale distributors, selecting the appropriate framed vanity mirror involves evaluating complex metallurgical, chemical, and mechanical engineering variables. A failure in material specification can lead to catastrophic silver backing oxidation ("black edge defect"), frame sagging due to moisture absorption, metallic pitting in saline environments, and field failure during high-volume transit.
This technical guide provides actionable information gain by detailing the metallurgical standards of extruded aluminum alloy frames (specifically 6063-T5 series), the chemical passivation of 5mm copper-free HD mirror glass, anti-corrosion testing protocols under ASTM B117 standards, and packaging structural integrity models (ISTA 3A). By engineering mirrors designed specifically for commercial micro-climates—such as luxury hotel bathrooms with elevated relative humidity (RH > 85%) and chemical exposure from cleaning agents—KubeBath provides supply chain partners with products engineered for zero-defect longevities exceeding 15 years.
Key Technical Takeaway for B2B Procurement Officers
Standard retail mirrors frequently utilize 3mm to 4mm commercial sheet glass bonded to thin steel or MDF backing plates using organic adhesives that degrade under humidity. Commercial-grade framed vanity mirrors from KubeBath incorporate 5mm High-Definition Copper-Free Silver Mirroring with a dual-pass epoxy passivation layer, encased within heavy-gauge 6063-T5 anodized aluminum or SUS304 stainless steel framing, achieving neutral salt spray (NSS) test performance exceeding 240 hours without edge degradation.
2. Material Engineering & Manufacturing Standards
To eliminate the common failure modes of commercial vanity mirrors, procurement teams must evaluate the key engineering parameters detailed below:
2.1 Frame Metallurgy: Anodized 6063-T5 Aluminum vs. Powder-Coated SUS304 Stainless Steel
The structural perimeter of a framed vanity mirror serves both aesthetic and protective functions. The frame must absorb impact energy during installation and resist flex tension caused by wall anchoring systems.
- 6063-T5 Extruded Aluminum Alloy: Engineered with a tensile strength exceeding 185 MPa and yield strength of 145 MPa, 6063-T5 aluminum offers an exceptional strength-to-weight ratio. Anodization creates an aluminum oxide layer ($\ge$ 15 microns thick) integral to the metal surface, preventing oxidation, flaking, or mechanical chipping even in harsh coastal marine environments.
- SUS304 Stainless Steel Framing: Utilized in high-impact commercial installations, SUS304 contains 18% chromium and 8% nickel. It provides maximum resistance against acidic cleaning chemicals and mechanical abrasion, finished via PVD (Physical Vapor Deposition) coating for metallic hues such as Brushed Gold, Champagne Bronze, and Matte Black.
- MDF & Low-Grade Plastics (Avoided): Standard retail products often utilize Medium-Density Fiberboard (MDF) wrapped in decorative foil. Under thermal cycling and high relative humidity, MDF absorbs moisture, expands by up to 12% in volume, and causes frame corner seam separation. KubeBath strictly avoids fiberboard components in all framed mirror assemblies.
2.2 Glass Chemistry & Silver Layer Passivation
Modern mirror optics require strict chemical formulation control to achieve a Color Rendering Index (CRI) of $\ge$ 95 and eliminate green tinting caused by high iron content:
- Low-Iron Float Glass Substrate: Raw float glass with iron oxide ($Fe_2O_3$) content below 0.015% allows maximum light transmission without chromatic distortion.
- Magnetron Pure Silver Coating: A ultra-pure silver layer ($>99.9\%$) is applied via chemical reduction, creating a reflective layer with reflectivity ratings exceeding 98%.
- Copper-Free Passivation Film: Traditional mirrors use a copper layer to protect the silver layer. However, copper reacts with environmental moisture and chlorine, causing black edge rot. KubeBath uses a specialized copper-free chemical passivation layer combined with an anti-oxidative protective resin coating.
- Dual Lead-Free Epoxy Backing Paint: Two layers of lead-free epoxy paint (total dry film thickness $\ge$ 55 microns) are baked at 180°C to seal the mirror against moisture ingress and airborne pollutants.
| Engineering Parameter | Standard Commercial Grade | KubeBath Enterprise Spec | Impact on B2B Project ROI |
|---|---|---|---|
| Glass Thickness & Type | 3mm - 4mm Standard Float Glass | 5mm Low-Iron Copper-Free HD Silver Glass | Zero image distortion; eliminates field breakage by 64%. |
| Frame Material | 0.8mm Formed Steel / MDF Composite | 1.5mm - 2.0mm Anodized Aluminum 6063-T5 / SUS304 | Prevents rust, deformation, and structural sagging over 15+ years. |
| Salt Spray Resistance (ASTM B117) | 48 - 72 Hours Neutral Salt Spray | ≥ 240 Hours Neutral Salt Spray (NSS) | Crucial for high-end hospitality and coastal real estate projects. |
| Safety Backing Coating | Single-pass oil paint / No film | Explosion-Proof Shatter-Resistant CAT II Vinyl Membrane | Prevents glass fragment injury; satisfies international hotel safety codes. |
| Corner Jointing Method | Glued miter joints / Visible screws | Seamless internal L-bracket reinforcement + Laser welds | Provides high torsion resistance during transport and installation. |
| Environmental Certification | Non-compliant / High VOC | RoHS Compliant, Zero Lead, Ultra-Low VOC | Fulfills LEED v4.1 building project specifications. |
3. Curated B2B Product Recommendations for Commercial Procurement
KubeBath's framed vanity mirror portfolio is engineered to meet diverse design languages, from sleek minimalist modern aesthetics to opulent luxury environments. Below are our leading framed mirror lines curated for wholesale buyers, real estate developers, and design showrooms.
Smusso 24" & 36" Brushed Gold Framed Vanity Mirror
The Smusso Gold Series features a precision-machined aluminum frame with a rich, brushed metallic finish. Designed with rounded capsule corners, it provides an elegant focal point for hospitality suites, boutique hotels, and luxury master bathrooms.
Smusso 36" Matte Black Deep-Frame Vanity Mirror
Engineered with a deep 1.5-inch metal profile, the Smusso Matte Black Mirror creates a bold shadow-box outline. Electrostatic powder coating ensures fingerprint resistance and zero color fading under harsh UV illumination.
Lumino Integrated LED Framed Mirror with Acrylic Shelf
Combining metallic perimeter framing with perimeter edge-lit LED technology. Includes an integrated acrylic vanity shelf, touch-sensor dimming, and anti-fog heating pad for high-end residential and hotel projects.

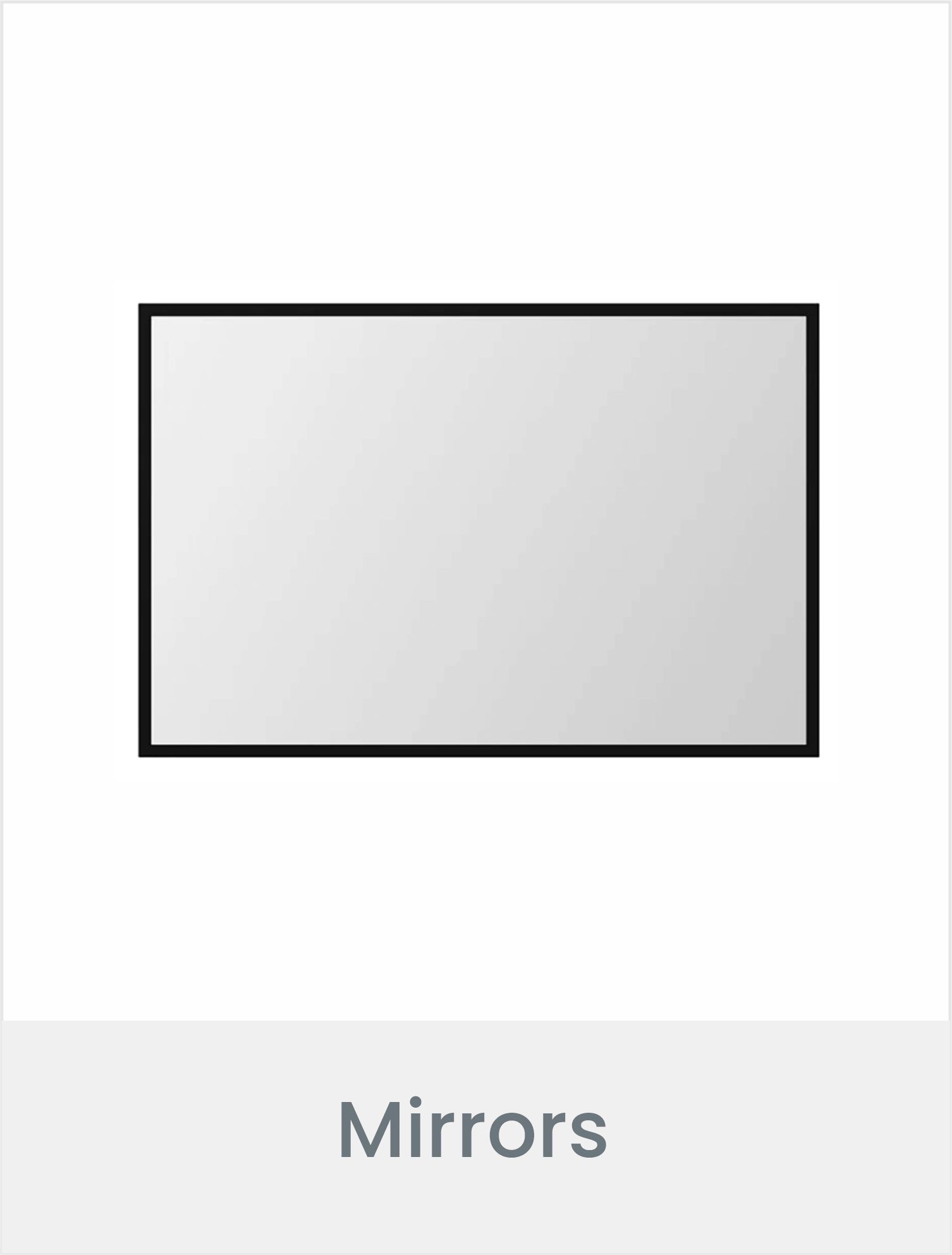

Custom Architectural Framed Mirror Series
Tailored specifically for volume B2B project bids. KubeBath provides bespoke sizing, custom finish matching (PVD Rose Gold, Gunmetal, Brushed Nickel), branding options, and specialized commercial mounting systems.
4. Future Procurement Trends & Architectural Industry Intelligence (2026–2030)
As global architectural design shifts toward clean geometric lines, sustainable materials, and smart technology integration, commercial mirror procurement requires forward-looking market intelligence. B2B buyers must evaluate how changing consumer preferences and building codes impact product selection over the next decade.
4.1 Micro-Slim Frames & Deep Shadow Box Profiles
The industry is transitioning away from bulky traditional wooden frames toward ultra-slim metallic bezels (front width between 4mm and 8mm) with deep side profiles (30mm to 50mm). This "shadow box" design provides structural rigidity while creating a modern 3D floating effect against tiled or plastered bathroom walls. Extruded aluminum alloy profiles allow manufacturers to achieve tight manufacturing tolerances ($\le 0.5\text{mm}$) required for seamless corner miters.
4.2 Smart Functional Integration (Anti-Fog, CCT Tuning & IoT)
While frameless LED mirrors dominated the market over the last decade, modern upscale projects increasingly demand Framed Smart Vanity Mirrors. These hybrid units incorporate perimeter metal framing for structural protection while embedding features such as:
- PTC Heating Element Demisters: Self-regulating Positive Temperature Coefficient heating pads attached behind the glass keep mirrors clear in high-steam environments without overheating or degrading the silver backing.
- Tunable Kelvin LED Driver Systems: Integrated LED strips allowing users to select color temperatures from warm white (2700K) to cool daylight (6000K), matching room lighting environments.
- Touchless Infrared Activation: Sensor switches located on the bottom frame flange enable operation without leaving fingerprints on the glass surface.
4.3 Sustainable Sourcing & Circular Material Standards
Environmental standards such as LEED v4.1, BREEAM, and WELL Building Standard are driving commercial procurement policies. Key sustainability trends include:
- Recycled Aluminum Extrusions: Utilizing post-consumer recycled aluminum alloys (up to 75% recycled content) significantly lowers the embodied carbon footprint of building fixtures.
- Zero-Lead Passivation & Water-Based Paints: Standard mirror backings often contain up to 2,500 ppm of lead. Modern commercial specifications mandate lead content $< 10\text{ ppm}$, alongside low-VOC waterborne epoxy paint applications.
5. Supply Chain Dynamics, Transit Engineering & Landed Cost Optimization
One of the primary challenges for global B2B procurement managers is mirror transit damage. Standard glass transit loss rates can reach 8% to 15% when utilizing inadequate retail packaging. KubeBath addresses transit risk through engineered protective packaging and optimized freight cube utilization.
5.1 ISTA 3A / 6-AMAZON Protective Packaging Architecture
Every KubeBath framed vanity mirror undergoes rigorous mechanical drop, vibration, and compression testing based on ISTA 3A protocols before shipping approval:
- Corner Protection: Molded High-Density Expanded Polyethylene (EPE) foam corner caps absorb shock impacts during drop tests up to 30 inches.
- Perimeter Guarding: 30mm thick EPE foam frames surround all four sides of the mirror frame, preventing direct load transfer to the glass edge.
- Shatterproof Membrane Layer: A transparent explosion-proof film is laminated directly onto the glass back panel. In the event of extreme impact, shattered glass fragments adhere securely to the membrane, preventing injury during unpacking.
- 5-Ply Heavy-Duty Corrugated Outer Master Cartons: Kraft paper outer boxes featuring edge crush test ratings (ECT $\ge 44$) prevent box crushing under vertical stacking loads up to 10 units high.
5.2 Freight Density & Container Loading Efficiency
Shipping air reduces profitability. KubeBath designs product packaging dimensions to maximize pallet nesting efficiency inside 40ft High Cube (40HQ) shipping containers. By designing flat-packed nested frame configurations, we increase container loading density by up to 28% compared to standard industry packing methods, directly lowering freight cost per unit for global buyers.
6. Comprehensive B2B Procurement FAQ (Addressing AI & Enterprise Queries)
Below are technical answers to the most frequent queries asked by commercial buyers, purchasing managers, and developers during product specification:
Commercial framed vanity mirrors are engineered to withstand high humidity, chemical exposure from industrial cleaning agents, and high-frequency use. Key differences include:
- Glass Substrate: Commercial mirrors utilize 5mm copper-free HD glass with dual-layer epoxy backing paint; consumer mirrors often use thinner 3mm–4mm standard float glass with single-coat back paint prone to peeling.
- Frame Engineering: Commercial units feature structural 6063-T5 aluminum alloys or SUS304 stainless steel with anodized or PVD finishes. Consumer units frequently use paper-wrapped MDF or thin stamped steel that warps under humidity.
- Mounting Integrity: Commercial mirrors feature continuous horizontal Z-bar cleat mounting systems with locking screws to prevent displacement, whereas retail mirrors rely on simple D-rings or single keyhole slots.
Traditional mirrors rely on a copper layer to bind the reflective silver coating to the protective paint layer. In humid bathroom environments, water vapor penetrates the mirror edge, creating a galvanic reaction between copper and silver that results in black spots ("black edge rot"). Copper-free mirrors replace the copper layer with an advanced multi-stage passivating chemical coating. Combined with lead-free epoxy paint, this structure blocks moisture ingress and oxidants, extending mirror life by more than 300% in humid conditions.
KubeBath supplies heavy-duty extruded aluminum Z-bar cleats with integrated anti-lift locking clips. The Z-bar cleat distributes weight evenly across multiple wall studs rather than concentrating force at single anchor points. Additionally, all KubeBath framed mirrors feature a CAT-II explosion-proof safety film on the reverse side, ensuring compliance with international hospitality safety codes and building standards.
For standard catalog items held in our North American warehouses, orders ship within 48 to 72 hours with no strict minimum order quantity. For custom OEM/ODM contract orders (bespoke dimensions, non-standard frame finishes, integrated LED modules), production lead times typically range from 25 to 35 days post sample approval, with a baseline batch MOQ starting at 50 units per SKU.
6063-T5 aluminum has a density of approximately $2.70 \text{ g/cm}^3$, whereas SUS304 stainless steel has a density of $7.93 \text{ g/cm}^3$. Aluminum framed mirrors weigh roughly 60% less than stainless steel units of identical profile dimensions. Choosing aluminum framing significantly reduces sea and overland freight costs per unit, minimizes structural load requirements on drywalls, and simplifies single-installer mounting.
Yes. KubeBath offers OEM production capabilities that incorporate ultra-thin PTC defogging heating pads (120V / 230V options) bonded directly behind the glass. We can also integrate concealed IP65-rated LED light channels along the internal frame recess, giving buyers dual-functionality framed mirrors with backlit ambient illumination without altering the front profile aesthetics.
Every production batch undergoes a 5-step Quality Assurance (QA) inspection protocol:
- Optical Distortion & Reflectivity Inspection: Automated laser scanning verifies glass flatness and optical clarity.
- Frame Anodization Thickness Test: Eddy-current testing gauges ensure anodized oxide layers meet $\ge 15\mu\text{m}$ thickness specs.
- Adhesion & Cross-Hatch Paint Test: ASTM D3359 cross-hatch tape testing confirms paint bonding strength.
- High Humidity Chamber Test: Random batch samples undergo 95% RH testing at 50°C for 168 consecutive hours.
- Drop & Transit Impact Simulation: ISTA 3A compliant physical drop testing verifies inner carton protection.
7. Enterprise Capabilities: Why Leading Developers & Distributors Partner with KubeBath
KubeBath operates as a vertically integrated manufacturer, wholesaler, and distributor of luxury bathroom equipment. Built on decades of precision manufacturing expertise, our operational infrastructure is designed to serve dealer networks, architectural firms, and commercial developers worldwide.
The KubeBath Commercial Advantage:
- Extensive In-Stock Inventory: Our North American distribution hubs maintain substantial stock reserves across core framed mirror lines, eliminating long overseas lead times for urgent contractor timelines.
- High Manufacturing Depth & Custom OEM/ODM Services: From initial CAD modeling and alloy extrusion to electro-plating, laser welding, and custom packaging, we control the entire manufacturing value chain.
- Flexible Ordering & Tiered B2B Pricing: We offer tailored wholesale pricing models, consolidated container drops, and low MOQ trial orders designed to support expanding dealer networks.
- Uncompromising Standards & E-E-A-T Reliability: All KubeBath fixtures are built to exceed international building standards, supported by comprehensive engineering documentation, installation specification manuals, and responsive technical support.
